SPECIFICATION

• Name:

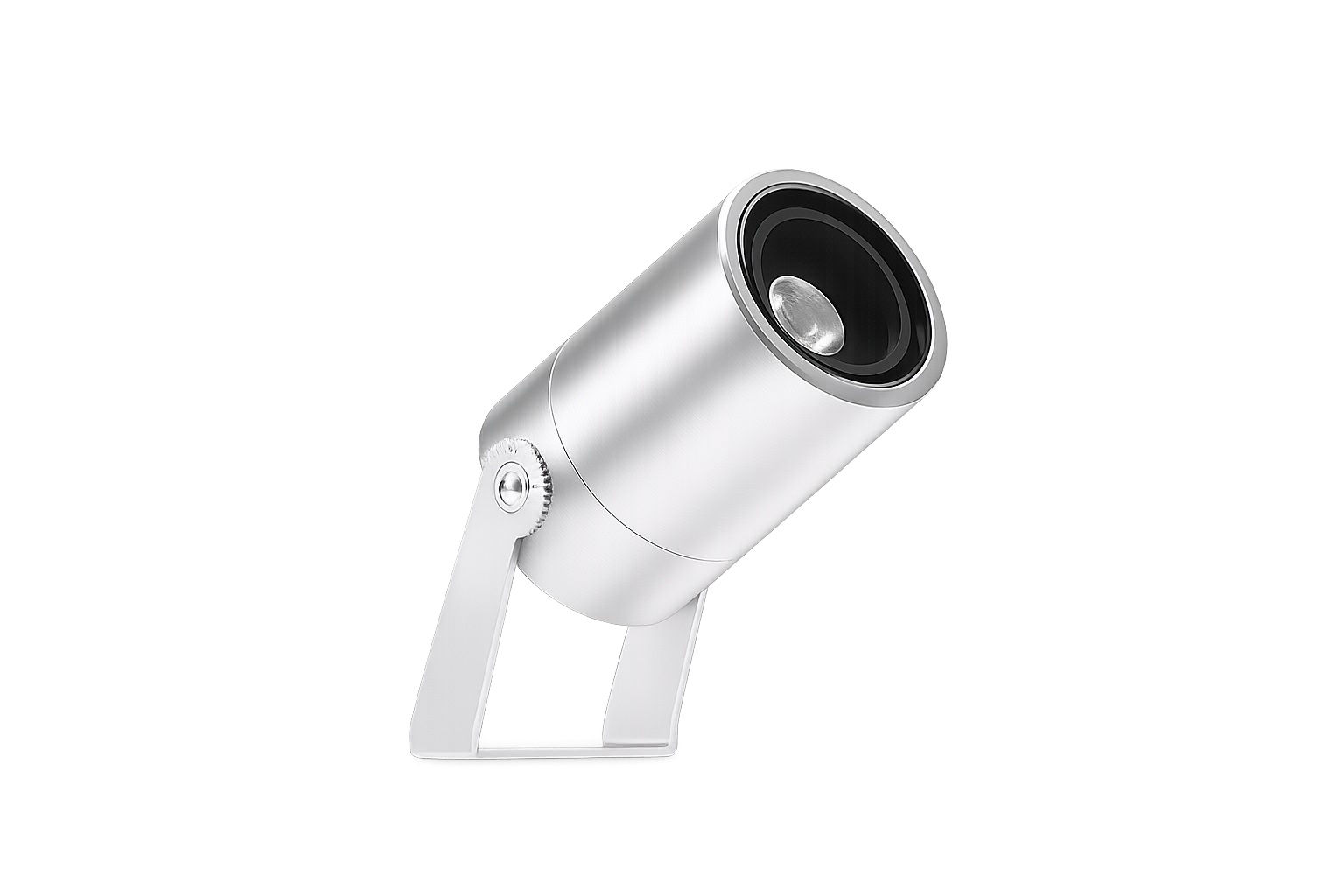

LED SPOTLIGHT 12W – SERIES A
• Order Code:
SA012
• Power consumption:
12W
• Input Voltage:
24VDC, 48VDC, 220VAC
• Control Type:
ON/OFF, DIM 0 - 10V, DALI, DMX512
• Color temperature:
3000k, 4000k, 5000k, RGBW
• Dimension:
Ø70xL147xH105 mm
• Beam angle:
12° 24° 36° 50°
• Lumen Output:
1080lm
• IP Rating:
IP68
• Chip lifetime:
50.000h
• Finish color:
Silver, Black
• Material:
Aluminium
• CRI:
>90
• Munting Type:
Surface Mount
• Efficiency:
90%
• Operation temperature:
<=60º
• Environment temperature:
-30º to 60ºC
• Standards:
+ RoHS; EMC protection
+ EN 60598 2-5 IEC 60598-2-5
+ EN 61347-2-4; EN 61047
• Warranty:
5 years
